Power Schottky

Schottky Rectifier with rating 1A and higher which is used in switching rectification application in power products.H type Schottky provides low IR,and provides extremely low reverse current, low power dissipation and can sustain higher voltage which prevents the thermal runaway problem during high operating temperature.

Products Guide Product Description

Products Guide

File type A

Attachment Name A

File type B

Attachment Name 1

ADD INQUIRY

Part Number

Spec.
Filter

Reset
Filter

Product Status

AEC-Q101
Qualified

Type

VRRM
Max.

IFSM

VF
Max.

@IF

IR
Max.

µA

@VR

Package

*Remark of Product Status :
New Product
Active
NSND (Not Suggested for New Design)
EoL (End of Life)

Product Description

Ultra Low IR Schottky Series For High Temp. Application

Product Features

• Ultra Low reverse current at high temperature
• Low forward voltage drop at high current
• High efficiency with low thermal risk
• Improve reliability and reduce heat-sink
• High current capability
• Optimize system performance & cost
• ACE-Q101 qualified

Application

• Lighting
• Switch Power Supplies
• TV power
• Battery Charger
• Adaptor
• Telecom
• Home Appliance
• Motor

MBR H TYPE 60V-150V series, Planar schottky

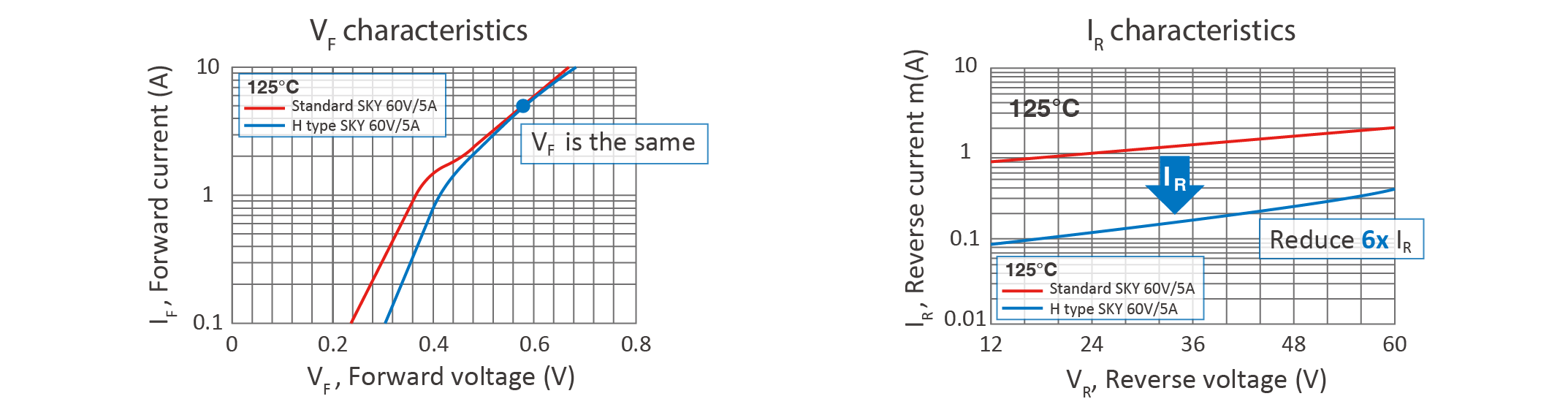

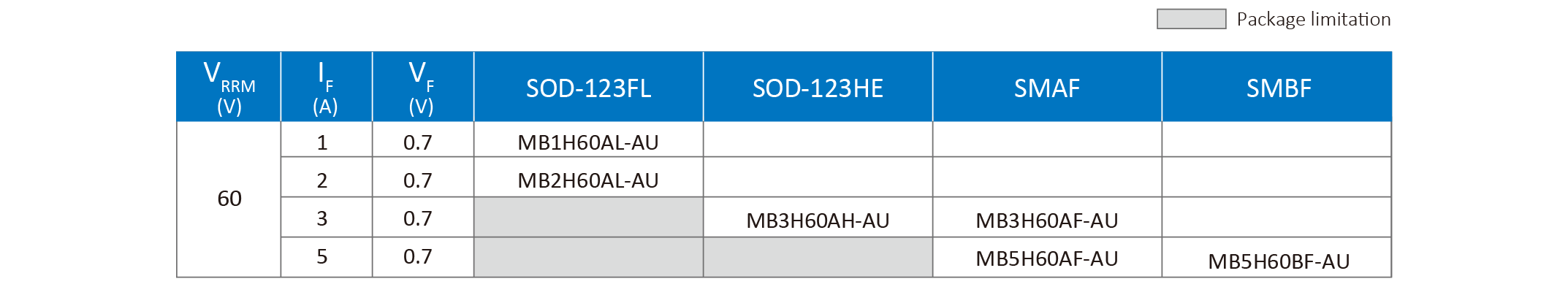

MBR H type 60V series

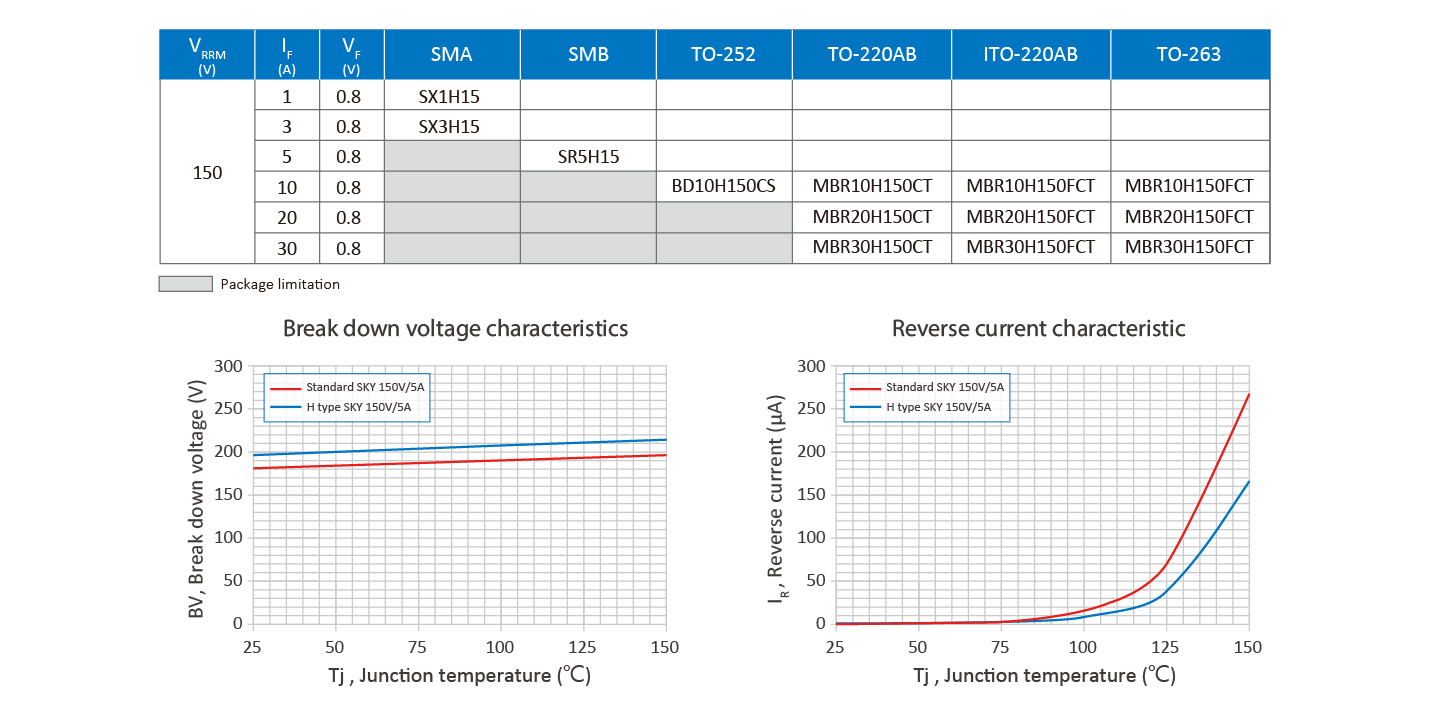

MBR H type 150V series

Operating junction 175℃
